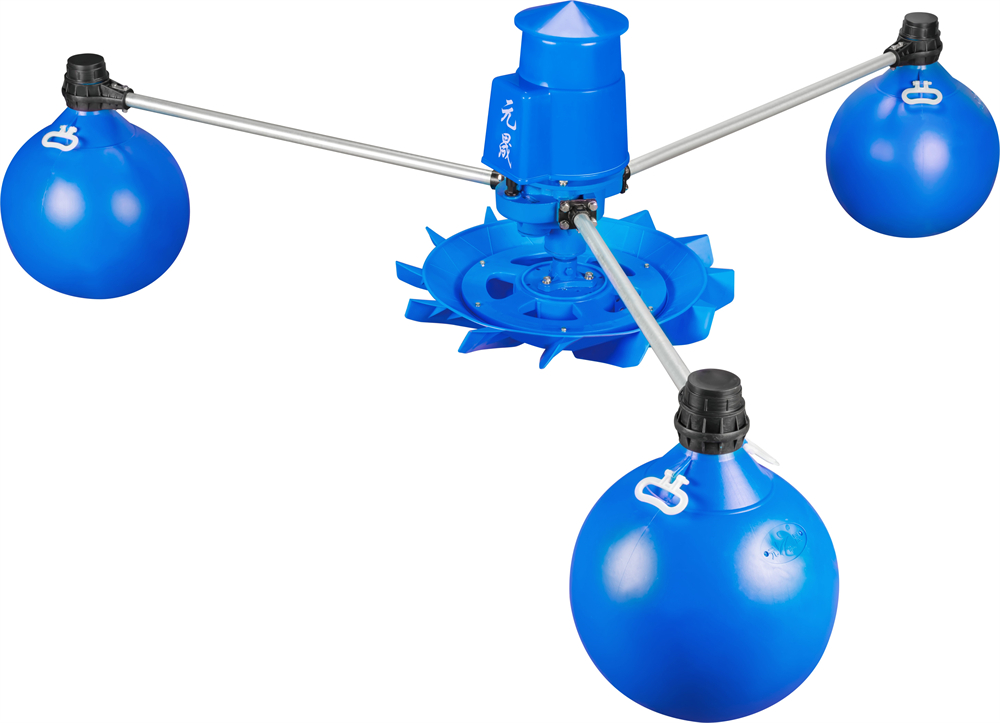

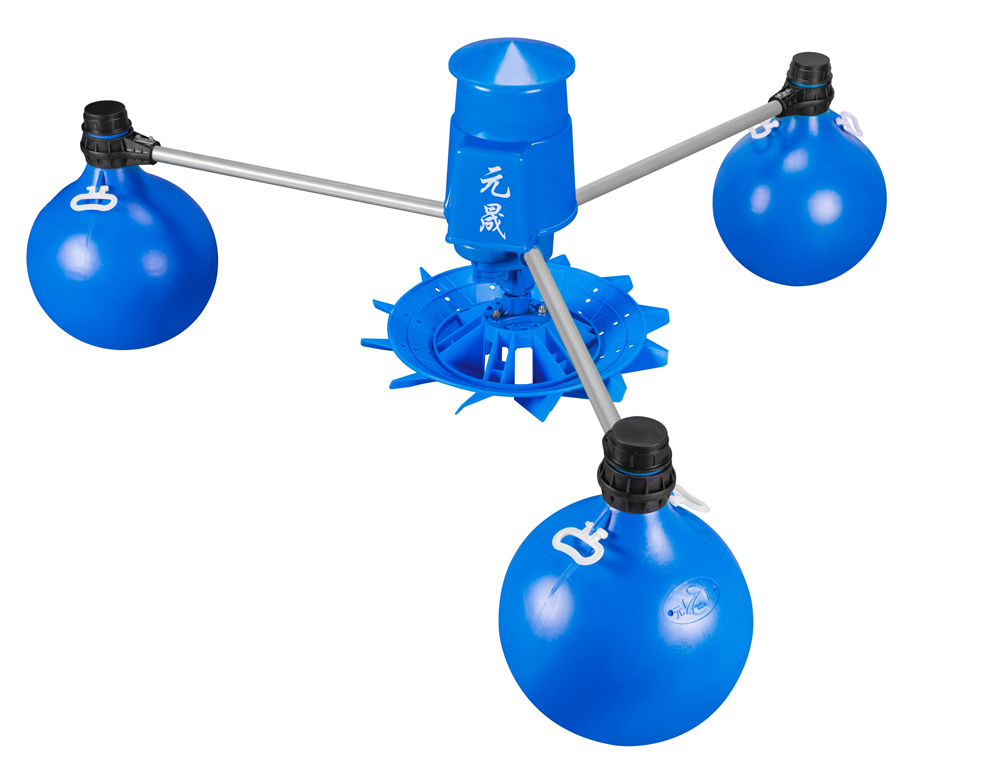

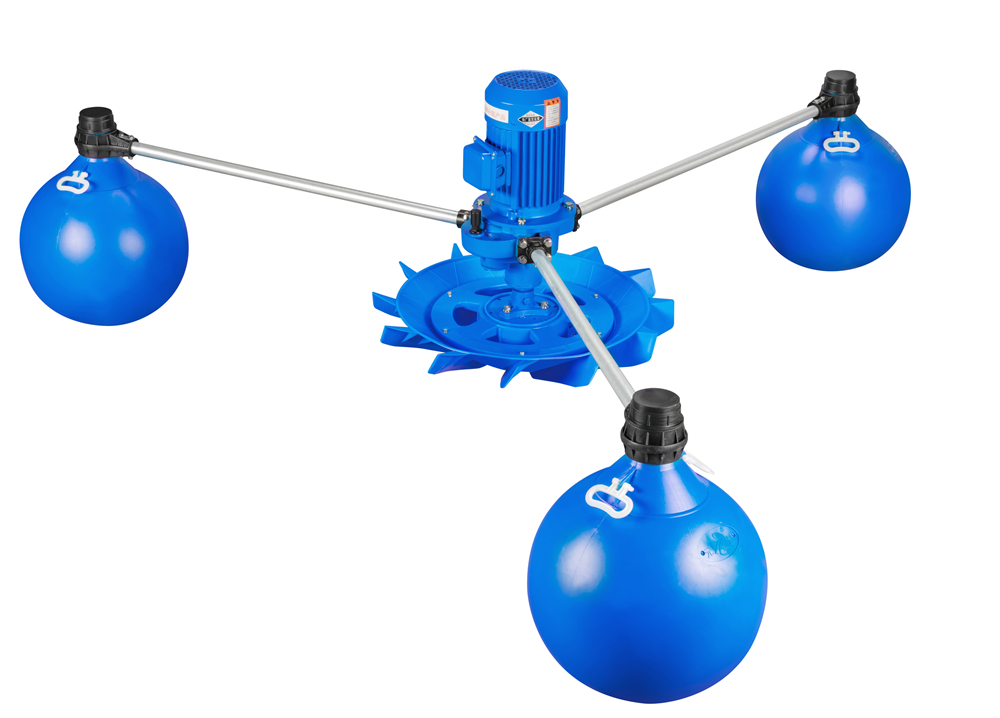

Through the tracking, investigation and analysis of the product quality of impeller aerator for several years, we found that the main failure of impeller aerator is motor burn-out and gear damage.
For these two problems, the Yuansheng brand impeller aerator developed by the factory has the following main characteristics:
1, the motor is equipped with a protector, when the three-phase power supply phase deficiency or the motor overheating will automatically jump away, so as not to burn out the motor accident.
2, the gear uses chromium manganese titanium alloy steel material, the tooth surface through carbon and nitrogen co-seepage, greatly prolong the service life.
3, the use of unwelded assembly impeller, smooth operation, no bias, convenient transportation.

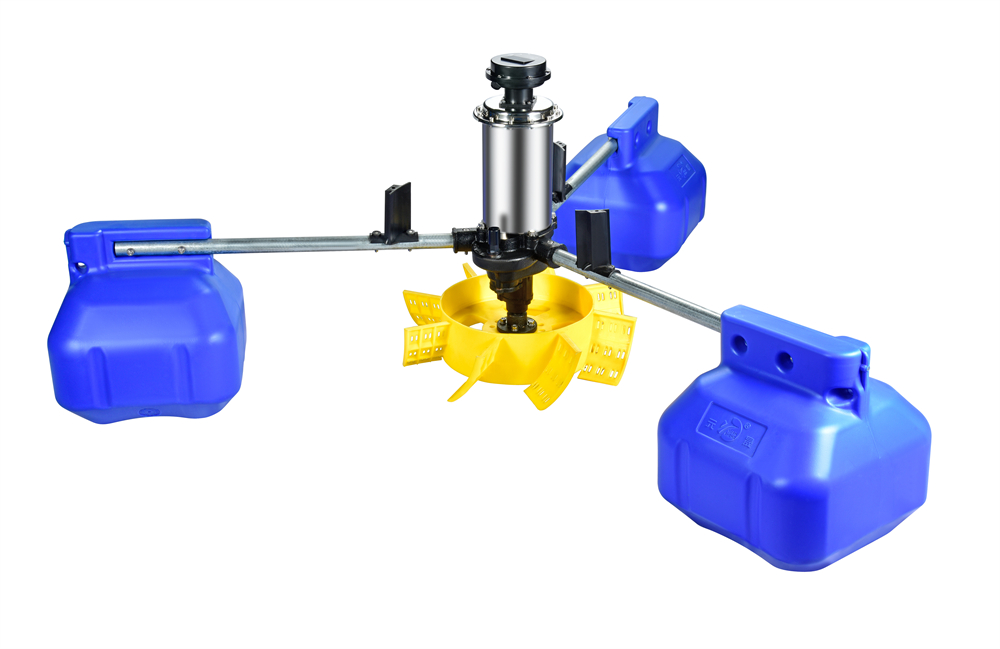

4. According to the different use environment and the special requirements of users, the engineering plastic impeller and stainless steel impeller are developed to ensure the long-term use in seawater or highly corrosive industrial wastewater, no need to often replace the impeller or paint.
| 型號/Type | 電壓Voltage(V) | 功率Power(kW) | 葉輪轉(zhuǎn)速 Impeller speed(r/min) | 增氧能力Oxy genation capacity(kg/h) | 動力效率Dynamic eff ciency(kg/Kwh) | 負(fù)荷(畝)Load(mu) |
| YY L-1.5A | 220 | 1.5 | 1420 | ≥2.3 | ≥1.5 | 5-8 |
| YY L-1.5 | 380 | 1.5 | 1420 | ≥2.3 | ≥1.5 | 5-8 |
| YL-1.5A | 220 | 1.5 | 138 | ≥2.3 | ≥=1.5 | 5-8 |
| YL-1.5 | 380 | 1.5 | 138 | ≥2.3 | ≥1.5 | 5-8 |
| YL-3.0 | 380 | 3.0 | 138 | ≥4.5 | ≥1.5 | 8-12 |
